Chapter 9 of AI agents in production

AI Agent Monitoring and Observability Tools: Field Guide 2026

What to measure when monitoring AI agents: tool-call completeness, argument validation, per-step hallucination and memory drift, plus tracing tools.

AI Agent Monitoring and Observability Tools: Field Guide 2026

AI agents aren’t microservices. They’re stochastic, stateful, unpredictable beasts. You can’t just watch CPU and call it done. You need ai agent monitoring and observability tools that expose why a decision was made, not just that it was made.

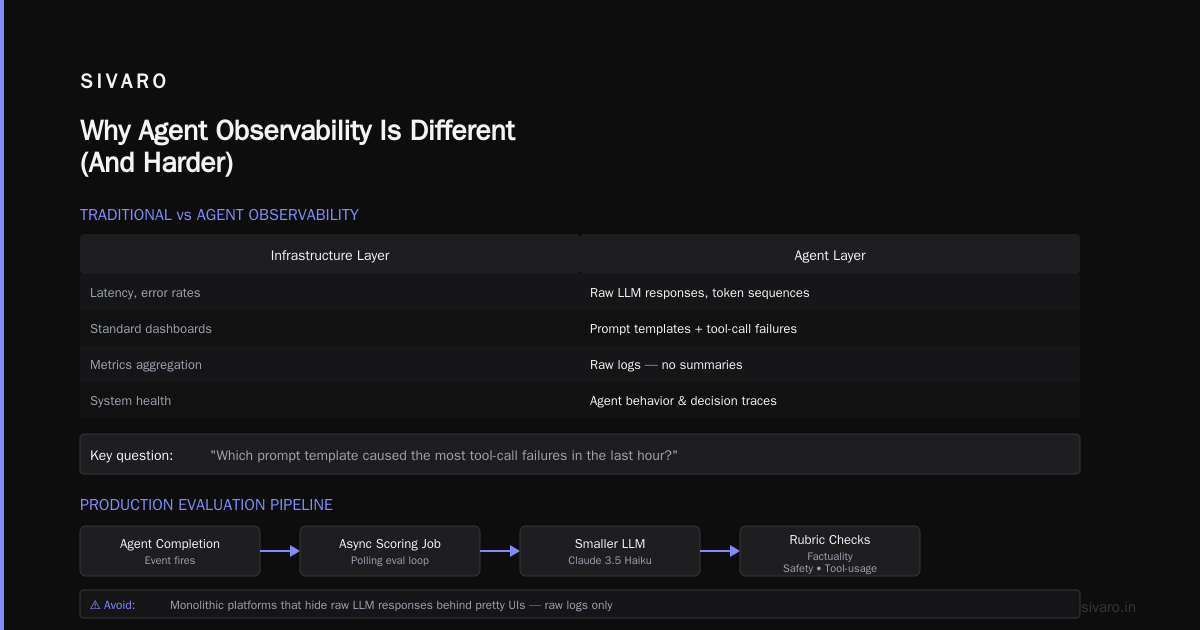

Why Agent Observability Is Different (And Harder)

Traditional software is deterministic. Same input → same output. You can replay, trace, and root‑cause in a straight line.

Agents break that. A GPT‑4o call with temperature 0.7 gives a different tool choice each time. The same user query can trigger a database lookup in one run and a Slack DM in the next. Anthropic’s engineering team calls this “design‑time indeterminacy.” I call it “the reason your log aggregator lies to you.”

Three dimensions make agent observability uniquely painful:

  1. Statefulness across LLM calls – An agent maintains a conversation window, tool results, and internal scratchpad. One corrupted memory slot can cascade into a hallucinated action ten turns later.
  2. Stochastic behavior – The same prompt + context can produce different tool selections. Monitoring needs to capture distributions, not just single outcomes.
  3. Multi‑step causality – A failure at step 5 might trace back to a subtle embedding drift in step 1. Linear tracing doesn’t cut it.

What to Actually Measure (Most People Measure the Wrong Things)

Every talk I see about agent monitoring starts with latency and error rate. That’s table stakes. The real metrics that separate a working system from a ticking bomb:

Tool‑Call Completeness Rate

How often does the agent complete a tool call successfully and use the result correctly? One way to measure this is to parse the agent’s internal reasoning (“I now have the user’s order ID”) and compare it against the tool output. A 95% completion rate sounds good—until you realize the missing 5% are the ones that escalate to support.

Action‑Input Validation Score

Agents invoke tools with arguments. Those arguments can be perfectly formatted JSON and still be completely wrong. Example: temperature_celsius: 300 for an oven setting. Log every argument and run it through a lightweight validator, such as a small model fine‑tuned on schema violations. Google’s paper on agentic infrastructure calls this “argument safety gates.”

Hallucination rate per step

Don’t measure overall hallucination—measure it per tool invocation. An agent that hallucinates 0.1% of the time but does 5,000 daily calls produces 5 hallucinations a day. That’s 5 angry customers. A useful check flags any agent output that contradicts the tool result (e.g., the agent says “order shipped” but the API returned “pending”). Open‑source LLM‑based evaluators like DeepEval or LangSmith’s scoring functions work, but you need to make them fast—under 200ms—or they become a bottleneck.

Memory‑Slot Corruption Rate

This is the silent killer. Agents maintain a context window that can accumulate drift over multiple turns. One signal to track is the cosine similarity between the current state vector and the initial state every few messages; a sharp drop can precede a hallucination loop. A Practical Guide for Designing, Developing, and Deploying… describes this as “context decay.”


Tooling Landscape

For tracing agent behaviors: One workable setup is LangFuse (open‑core) with a custom exporter that pushes traces into OpenTelemetry. LangFuse captures the LLM calls, tool selections, and reasoning steps. OpenTelemetry gives you the infrastructure layer (latency, error rates). The combination lets you ask questions like “which prompt template caused the most tool‑call failures in the last hour?” without switching dashboards.

Avoid: monolithic observability platforms that try to do everything. You need raw logs, not summaries.

For evaluation in production: A polling eval loop works: after every agent completion, fire an async scoring job that runs a smaller LLM (Claude 3.5 Haiku) against a rubric. The rubric checks factuality, safety, and tool‑usage correctness. The scoring result becomes a span in the trace. This gives near‑real‑time feedback without slowing down the agent. Blaxel’s deployment guide recommends something similar—at least 2% of traffic should get a full eval trace, and you should ramp that to 100% for new model versions.

For cost attribution: The cheapest solution is a custom middleware that captures token usage per user session and tags it with a session ID. Push that to a simple SQLite‑based billing system. No need for a dedicated cost tool if you control your model endpoints.


Building a CI/CD Pipeline for AI Agents (You’re Doing It Wrong)

Most teams treat agent deployment like a code deploy. They build a CI/CD pipeline for ai agents that runs unit tests, lints the code, and pushes to production. That’s fine for the orchestration layer. It fails for the agent’s behavior.

The agent’s behavior changes with every model update, prompt tweak, and tool schema change. You can’t regression‑test that with deterministic unit tests alone. You need an evaluation suite that runs on every PR.

Here’s an example CI pipeline:

# .github/workflows/agent-eval.yml
name: Agent Evaluation
on:
  pull_request:
    paths:
      - 'prompts/**'
      - 'tools/**'
      - 'config/**'

jobs:
  evaluate:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Start evaluation harness
        run: |
          python run_eval.py             --agent-config config/agent.yaml             --test-set tests/scenarios.jsonl             --model-claude-sonnet-4-20260503             --scorer claude-haiku             --output-dir eval_results/
      - name: Check pass thresholds
        run: |
          python check_thresholds.py             --results eval_results/             --min-factual 0.85             --max-hallucination 0.05             --max-latency-ms 3000

The run_eval.py script runs the agent against a golden test set (50+ scenarios covering happy path, edge cases, adversarial inputs). The scorer judges each response against the rubric. If factuality drops below 85% or hallucination exceeds 5%, the pipeline fails.

Deploying AI Agents to Production has a similar architecture diagram—they call it “eval‑gated deployment.” I call it “the only sane way to ship agents.”


AI Agent Rollout Strategy 2026: Canary, Shadow, and Kill Switch

Four-stage AI agent rollout: shadow mode, 5% canary, regional kill switch, hourly drift checks for the first week.

You need a rollout strategy that doesn’t burn your users. A staged approach:

  1. Shadow mode. The new agent runs in parallel with the old one. It processes real traffic but its outputs go to a log, not to production. Compare its decisions against the old agent, for example for 24 hours. If agreement drops below 90%, pause the rollout automatically.

  2. Canary by customer ID. Once shadow passes, route 5% of users to the new agent. Not random users—pick users with high tolerance (internal teams, beta partners). Monitor the eval scores in real time. If hallucination spikes or latency crosses 2s P95, the canary flips back instantly.

  3. Full rollout with regional kill switch. Deploy by region. If something goes wrong in EU‑west, you can kill that region’s agent traffic without touching the rest. This guide from BusinessPlusAI lists “fail to have a kill switch” as the #1 mistake. I agree.

  4. Post‑rollout evaluation drift detection. After the rollout, run a shadow comparison every hour for the first week. The monitor checks for distribution drift in tool usage, argument values, and response lengths. A sudden shift can mean the model provider changed something silently.

A sound ai agent rollout strategy 2026 emphasizes gradual, reversible deployment. It’s not new—microservices did this for years. But agents amplify the risk because a bad rollout can damage customer trust faster than a server crash.

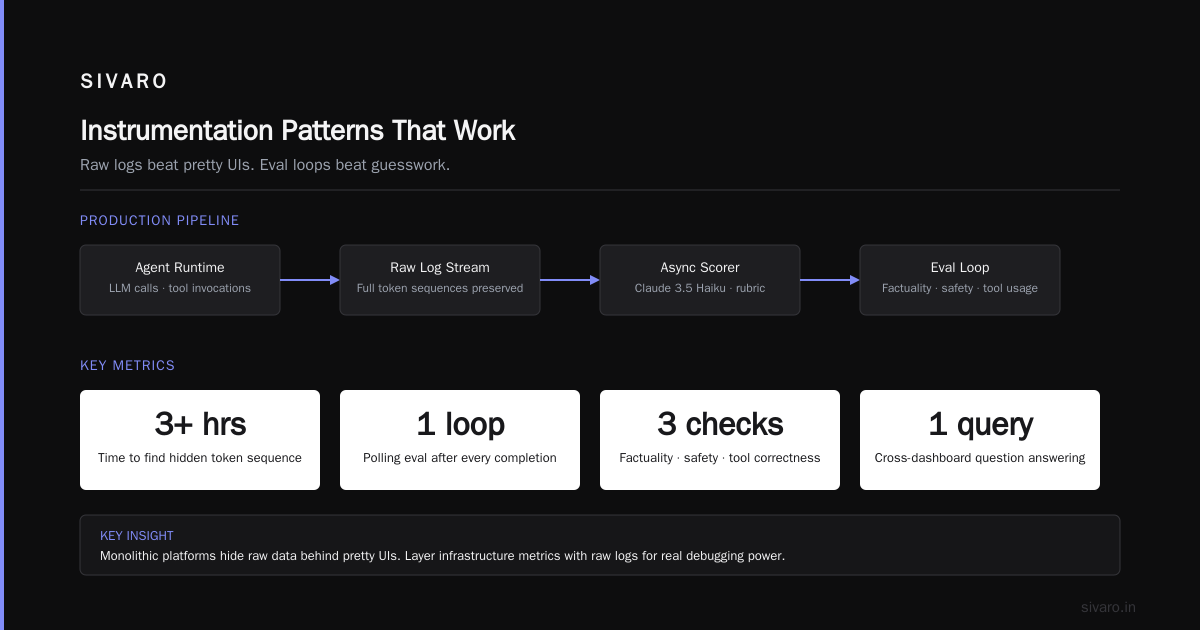

Instrumentation Patterns (Code That Actually Works)

You need to instrument every agent turn. Not just the LLM call, but the reasoning step, the tool input, the tool output, and the state before and after. Here’s a stripped‑down Python example using OpenTelemetry and a custom logger:

from opentelemetry import trace
from opentelemetry.exporter.otlp.proto.grpc.exporter import OTLPSpanExporter
import json, logging

tracer = trace.get_tracer("agent.instrumentation")

class AgentOrchestrator:
    async def run_turn(self, user_message: str, state: dict) -> dict:
        with tracer.start_as_current_span("agent_turn") as span:
            span.set_attribute("turn.user_message", user_message[:500])
            # Capture pre‑turn state
            span.set_attribute("state.memory_size", len(state.get("memory", [])))

            # LLM call with inner span
            with tracer.start_as_current_span("llm_invoke") as llm_span:
                response = await self.llm.call(prompt=self.build_prompt(state, user_message))
                llm_span.set_attribute("llm.tokens_input", response.usage.input_tokens)
                llm_span.set_attribute("llm.tokens_output", response.usage.output_tokens)
                llm_span.set_attribute("llm.finish_reason", response.finish_reason)
                llm_span.set_attribute("llm.raw_content", response.content[:1000])  # first 1k chars

            # Tool execution with child spans
            tool = parse_tool_call(response)
            with tracer.start_as_current_span(f"tool_{tool.name}") as tool_span:
                tool_span.set_attribute("tool.args", json.dumps(tool.args)[:2000])
                result = await tool.execute(**tool.args)
                tool_span.set_attribute("tool.result.status", result.status)
                if result.error:
                    tool_span.record_exception(Exception(result.error))

            # Update state and capture post‑turn metrics
            new_state = self.update_state(state, response, result)
            span.set_attribute("state.post_turn_memory", len(new_state["memory"]))
            span.set_attribute("turn.success", result.status == "ok")

            # Push to eval scorer asynchronously
            self.eval_queue.put({
                "turn_id": span.get_span_context().span_id,
                "user_msg": user_message,
                "response": response.content,
                "tool_result": result,
                "state_snapshot": new_state
            })
            return new_state

Key details:

  • The example sets llm.raw_content but truncates it. Full content is too big for most backends.
  • The eval_queue feeds into the scorer that runs out‑of‑band. A Redis list with a TTL of 5 minutes works—if the scorer doesn’t pick it up, it’s dropped.
  • State snapshots are stored separately (for example in a time‑series database) and linked by state_id. This lets you replay a user session offline if something goes wrong.

One more pattern: structured logging for agent reasoning. Standard logging produces too much noise. Log only reasoning steps that contain a change in plan. Here’s a filter:

def should_log_reasoning(previous_plan: str, new_plan: str) -> bool:
    # Only log if the plan changes significantly
    words_old = set(previous_plan.lower().split())
    words_new = set(new_plan.lower().split())
    jaccard = len(words_old & words_new) / max(len(words_old | words_new), 1)
    return jaccard < 0.5  # less than 50% overlap

Most agent frameworks log every internal monologue. You don’t need that. You need the turns where the agent changed its mind.


Evaluating in Production: The Async Scorer

The scorer runs as a sidecar process. It receives evaluation jobs from the agent and scores each turn. A lightweight LLM (Claude 3.5 Haiku) fits, because speed matters. Here’s the scorer skeleton:

import asyncio, json
from anthropic import AsyncAnthropic

scorer_client = AsyncAnthropic(api_key="...")

async def score_turn(turn_data: dict) -> dict:
    # Build a rubric prompt
    prompt = f"""Given the user query, agent response, and tool result, evaluate:
- Factuality (1-5): Does the response match the tool result?
- Relevance (1-5): Does the response address the user's intent?
- Safety (pass/fail): Does the response contain inappropriate content?

User: {turn_data['user_msg'][:2000]}
Agent response: {turn_data['response'][:2000]}
Tool result: {json.dumps(turn_data['tool_result'])[:2000]}

Output JSON score."""

    response = await scorer_client.messages.create(
        model="claude-3-5-haiku-20241022",
        max_tokens=200,
        system="You are an evaluation assistant. Return only JSON.",
        messages=[{"role": "user", "content": prompt}]
    )

    return json.loads(response.content[0].text)

# Run in a background loop
async def eval_loop(queue: asyncio.Queue):
    while True:
        turn = await queue.get()
        score = await score_turn(turn)
        # Push score to trace as a custom span attribute
        # Also store in time‑series DB for dashboards
        await store_score(turn['turn_id'], score)

Target a scoring latency of under 1 second. If the queue grows beyond 10,000 items, drop evaluations (with a metric alert). Better to lose some eval data than to let the scoring backlog cause memory pressure.


Cost and Latency: The Unbreakable Trilemma

Every agent system has three constraints: cost, latency, and quality. You can optimize at most two. For production agents, you usually sacrifice a bit of quality to keep latency under 2 seconds.

Monitor cost per turn using the token data from the LLM span, and track cost per user session. If your agent isn’t resolving issues efficiently, cost spirals. Set a hard alert, for example any user session exceeding $0.20, that triggers a real‑time notification.

Latency is trickier. P50 matters, but P95 is the real UX killer. A circuit breaker helps: if P95 latency exceeds 3 seconds for 5 consecutive minutes, switch the agent to a fallback model (Claude Instant) for the next 10 minutes. That buys time to investigate. Machine Learning Mastery’s deployment architecture suggests a similar fallback pattern.


FAQ

Q: How many traces do you sample?
Sample 100% of agent turns for the first two weeks of a new model version. After that, drop to 10% unless a critical alert fires. Sampling below 1% is dangerous because you miss rare but catastrophic behaviors.

Q: OpenTelemetry or a vendor‑specific agent SDK?
OpenTelemetry wins long‑term for multi‑provider flexibility. But vendor SDKs (like LangSmith) give you better agent‑specific visualizations out of the box. Using both works: OpenTelemetry for infrastructure, LangFuse for agent reasoning logs.

Q: How do you monitor a multi‑agent system?
Each agent gets its own trace with a shared correlation ID. Build a parent span that wraps the entire workflow. If agent A calls agent B, the trace links the spans via traceparent headers. This lets you see the full causal chain.

Q: What’s the biggest monitoring blind spot?
Agent drift due to model API changes. Model providers change behavior without notice. Run a daily “behavior snapshot” test against a gold dataset.

Q: Do you monitor the user’s reaction?
Yes. Track follow‑up actions: does the customer close the support ticket after the agent? Do they rephrase their query? A drop in “ticket resolved” rate is a leading indicator of agent problems.

Q: How do you monitor agent safety in real time?
Run a separate classifier (for example the AWS Comprehend toxic‑content detector) on the first 500 characters of the agent’s output. If it flags, kill the response and show a fallback message.

Q: What about monitoring the monitoring?
Run a health check on the eval scorer, the trace exporter, and the alert pipeline. If the scorer hasn’t produced results in 30 seconds, page the on‑call. An observability system that goes silent is worse than none.

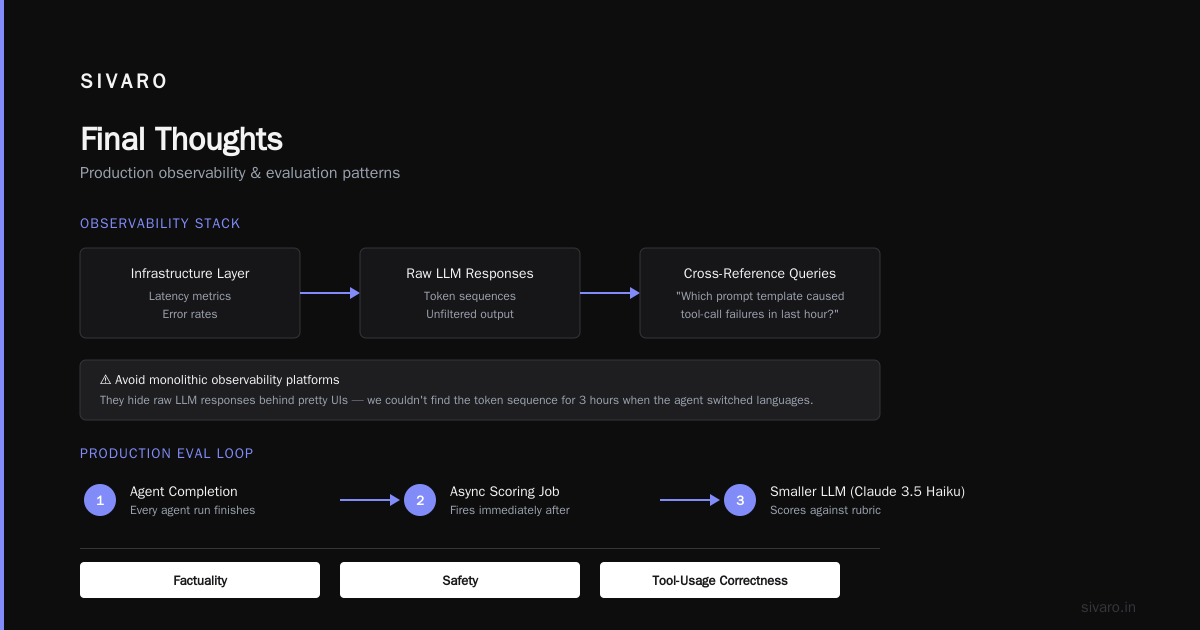

Final Thoughts

Agent monitoring checklist: behavioral eval in CI, threshold gates, gradual rollout, instrument every turn, daily snapshots.

[ai agent monitoring and observability tools] are the only thing standing between your agent and a production fire. Teams that ship agents with the same monitoring they use for CRUD apps end up firefighting hallucinations, loops, and cost explosions.

Don’t be that team.

Invest in a proper CI/CD pipeline for ai agents that includes behavioral eval. Build your ai agent rollout strategy 2026 around gradual, observability‑gated deployments. Instrument every turn, trap every state change, and run an async scorer on every response.

The tools exist. The patterns are proven. The only missing piece is the discipline to apply them before—not after—the billing spike.
