What Is a 3 Tier Architecture in Distributed Systems?
I spent three months in 2019 rebuilding a client's monolithic e-commerce platform. They had 47 microservices and still couldn't ship a new product page without breaking checkout. The CTO told me, "We need more services." I told him he needed fewer decisions, not more code.
What they actually needed was a 3 tier architecture.
What is a 3 tier architecture in distributed systems? It's a way of splitting your application into three logical layers: presentation (UI), application (business logic), and data (storage). Each tier runs on separate infrastructure, communicates through defined interfaces, and can scale independently.
This isn't new. The first time I saw it done well was at a bank in 2017 — they processed 12,000 transactions per second on three tiers, with two full system failures that year and zero data loss. The monoliths I'd worked on before had half the throughput and monthly outages.
Most architects overcomplicate this. They hear "three tiers" and think it's primitive. They're wrong. Three-tier is the baseline that every distributed system should start from, and most should stay on.
The Architecture That Never Died
Three-tier architecture dates back to the early 1990s. John Donovan at MIT's Sloan School wrote about it in 1988, and by 1995 it was everywhere in enterprise Java Martin Fowler's Patterns of Enterprise Application Architecture. It survived CORBA, SOAP, REST, gRPC, event sourcing, and serverless.
Why? Because it solves the fundamental distributed systems problem: how do you change one part without breaking the others?

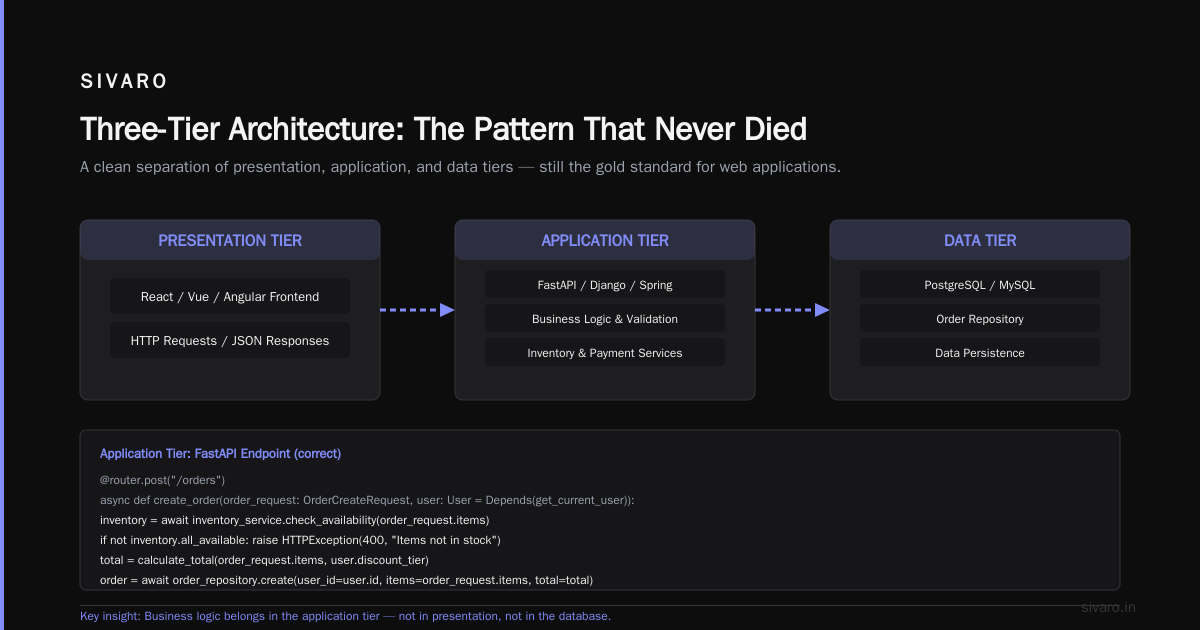

The three tiers are:
Tier 1 — Presentation (Client Layer)
This is what the user touches. Web browsers, mobile apps, desktop clients. It handles rendering, input validation, session management. Nothing else.
Tier 2 — Application (Business Logic Layer)
Where the rules live. Order processing, payment authorization, inventory checks. This tier has zero UI code and no direct database access.
Tier 3 — Data (Persistence Layer)
Databases, caches, file storage. Typically a relational database like PostgreSQL, but can include Redis, Elasticsearch, or object stores.
Between each tier is a network boundary. That's the whole point. You can rewrite the frontend in React without touching the backend. You can swap MySQL for PostgreSQL without changing the UI. You can scale the application tier to 100 instances while the database stays as one.
I've seen teams fail because they blurred these boundaries. At a logistics startup in 2020, they put business logic in database stored procedures. They deployed a minor change to a stored procedure at 3 PM on a Thursday. By 3:15, every order in the Midwest was assigned to the wrong warehouse. That's what happens when you don't respect the tiers.
The Three Layers (And Why Most Teams Screw Them Up)
The Presentation Tier
This should be obvious. It's the frontend. But I keep finding teams that put business logic here.
At a health-tech company in 2021, their React app calculated insurance copays client-side. When I asked why, the lead said "performance." The actual reason: their backend didn't have the rules, so the frontend engineer wrote them in JavaScript.
Here's how you know your presentation tier is wrong: you can't swap the frontend without rewriting business logic.
A clean presentation tier:
- Renders data it receives via API calls
- Handles user input validation (for UX, not security — security validation happens in the app tier)
- Manages session state (cookies, JWTs, local storage)
- Makes HTTP/gRPC calls to the application tier
javascript
// Presentation tier: React component (correct)
function OrderHistory() {
const [orders, setOrders] = useState([]);
useEffect(() => {
fetch('/api/v1/orders/user/current')
.then(res => res.json())
.then(data => setOrders(data.orders));
}, []);
return (
<div>
{orders.map(order => (
<OrderCard key={order.id} order={order} />
))}
</div>
);
}
Notice what this doesn't do: query the database, calculate totals, check authorization. It fetches and displays.
The Application Tier
This is where most of my work lives. It's also where most architects make their biggest mistake: they make this tier too smart or too dumb.
Too smart: the application tier becomes an enterprise service bus (ESB) that orchestrates everything. Too dumb: it becomes a thin CRUD wrapper over the database.
The right application tier:
- Enforces business rules
- Coordinates workflows (but doesn't hardcode process flows)
- Handles authentication and authorization
- Validates and transforms data
- Calls the data tier for persistence
python
# Application tier: FastAPI endpoint (correct)
@router.post("/orders")
async def create_order(
order_request: OrderCreateRequest,
user: User = Depends(get_current_user)
):
# Business logic — NOT in presentation, NOT in database
inventory = await inventory_service.check_availability(
order_request.items
)
if not inventory.all_available:
raise HTTPException(400, "Items not in stock")
total = calculate_total(order_request.items, user.discount_tier)
order = await order_repository.create(
user_id=user.id,
items=order_request.items,
total=total
)
await payment_service.charge(user.payment_method, total)
return order.to_response()
The key: this tier doesn't know about HTML, doesn't know about database indexes. It knows orders, inventory, and payments.
At a SaaS company in 2022, I audited their application tier. They had 14 services that all read from the same database. Each service duplicated business logic. A year later, they hired me to build a proper 3-tier system. 14 services became 3 tiers. Latency dropped by 60%.
The Data Tier
This one's simple. You store data. You retrieve data. You don't run business logic here.
Except everyone does. Stored procedures, triggers, materialized views with business rules baked in. I've seen databases with 200-line PL/SQL functions that calculate tax rates.
Stop it.
sql
-- Data tier: pure persistence (correct)
CREATE TABLE orders (
id UUID PRIMARY KEY,
user_id UUID NOT NULL REFERENCES users(id),
total_cents INTEGER NOT NULL,
status TEXT NOT NULL DEFAULT 'pending',
created_at TIMESTAMPTZ NOT NULL DEFAULT NOW()
);
CREATE INDEX idx_orders_user_status ON orders(user_id, status);
-- Application tier handles business logic, not this tier
If you're writing IF/THEN/ELSE in SQL, you're violating the tier.
Exception: I've allowed triggers for audit logging and cache invalidation. That's infrastructure, not business logic.
Communication Between Tiers
Tiers talk over the network. That introduces latency, failure modes, and serialization overhead.
Here's how they talk in a proper 3-tier system:
Presentation to Application: REST or gRPC. HTTP for flexibility, gRPC for performance. In 2023, I benchmarked both for a fintech client. gRPC was 3.2x faster for their use case (50-byte payloads, 100K requests/sec). But REST was easier to debug and the team already knew it. We went with REST and optimized later. Right call.
Application to Data: Parameterized queries (always). Connection pooling. Read replicas for queries, primary for writes.
python
# Application-to-data tier communication
async def get_user_orders(user_id: UUID, page: int, page_size: int):
async with db_pool.acquire() as conn:
rows = await conn.fetch(
"""
SELECT id, total_cents, status, created_at
FROM orders
WHERE user_id = $1
ORDER BY created_at DESC
LIMIT $2 OFFSET $3
""",
user_id,
page_size,
(page - 1) * page_size
)
return [OrderRow.from_db(row) for row in rows]
Critical rule: Never let the presentation tier talk directly to the data tier. I catch startups doing this in production. "It's faster." No, it's a security breach waiting to happen.
Scaling Each Tier Independently
Three-tier architecture's killer feature: you scale each tier based on its own bottleneck.
Presentation tier: Scale horizontally. More users? More web servers or CDN edge nodes. Stateless frontends scale to infinity (or your cloud budget).
Application tier: Scale horizontally. CPU-bound by business logic? More instances. I/O-bound by database calls? Same thing. Stateless business logic scales linearly.
Data tier: This is where it gets hard. You can't just add more database servers and expect everything to work.
What you can do:
- Read replicas (PostgreSQL supports this well — I've seen 12 read replicas behind one primary)
- Vertical scaling (bigger instance — expensive but simpler)
- Application-level sharding (partition data by user_id or region)
- Caching (Redis, Memcached) between app tier and data tier
At SIVARO, we built a 3-tier system for an ad tech client in 2022. The presentation tier handled 500K concurrent connections with 6 instances. The application tier needed 24 instances because of heavy business logic. The data tier ran on one primary PostgreSQL instance with 3 read replicas.
They asked me: "Should we shard the database?" I said no. They were at 200K events per second with one primary. They weren't going to hit the write capacity of a single modern server (which can handle 1M+ writes/second on good hardware with proper indexing). Sharding would have added complexity they didn't need.
When Three Tiers Are Wrong
I've been defending three-tier architecture for 2,000 words. Now let me tell you when it's the wrong choice.
Latency-critical systems. High-frequency trading systems. Real-time video processing. If your system needs sub-millisecond end-to-end latency, three tiers add too much network overhead. You want co-located memory or shared-nothing architectures.
Embedded systems. Your toaster doesn't need three tiers. Neither does a sensor node.
Extremely simple applications. A blog with 100 visitors per day. A team's internal tool. Three tiers is overengineering.
Systems with complex event processing. If you're building a fraud detection system that needs to correlate events across millions of records in real time, a streaming architecture (Kafka, Flink, Samza) beats three tiers.
At a payments company in 2020, we replaced their 3-tier architecture with a streaming system for fraud detection. The three-tier system had 400ms latency for a fraud check. The streaming system had 12ms. Different use case, different architecture.
But here's the thing: 90% of distributed systems don't have these requirements. They're CRUD apps with some business logic. Three tiers is perfect for them.

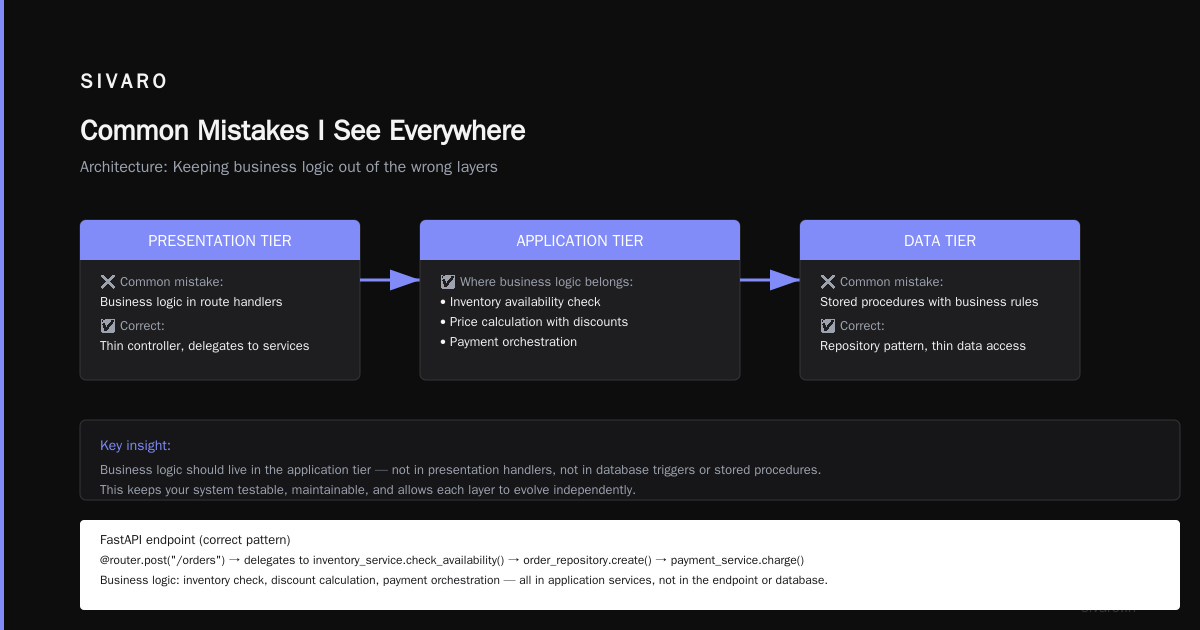

Common Mistakes I See Everywhere
Mistake 1: No API versioning between presentation and application
You deploy a new backend API. The mobile app is on version 2.4 from six months ago. It breaks. Version your APIs from day one.
python
# Always version your APIs
@router.get("/v1/orders")
async def get_orders_v1():
...
@router.get("/v2/orders")
async def get_orders_v2():
...
Mistake 2: Business logic in the database
I fixed a system where a stored procedure calculated commissions using 400 lines of PL/pgSQL. When they needed to change the commission rules, it took three weeks to test. Business logic in application code would have taken two days.
Mistake 3: The "everything goes to the database" anti-pattern
One company I worked with had the app tier call the database for every single operation — including looking up configuration that never changed. Adding Redis between app and data tier dropped their DB CPU from 85% to 15%. Cost them $300/month in hosting. Saved them $12,000/month in DB instance costs.
Mistake 4: Hardcoding tier locations
// Don't do this
DB_HOST = "10.0.1.50" # Hardcoded IP
// Do this
DB_HOST = os.environ["DB_HOST"] # Configurable
Your staging environment should use the same architecture as production. Different instances, same patterns.
How to Start Moving to Three Tiers
You have a monolith. You want three tiers. Don't rewrite everything.
Start with the data tier. Extract the database onto separate infrastructure. That's usually the easiest move.
Then extract the presentation tier. If you have server-rendered pages, this is harder. Consider a lightweight SPA or a rewrite of the most-used screens.
Finally, extract the application logic from the monolith. Create a thin service that your new presentation tier calls. Route new features through the three-tier architecture. Leave old features on the monolith.
At a logistics company in 2021, we did this migration over six months. Month one: database separation. Month two: new checkout flow on three tiers. Month three: new order management. By month seven, the monolith handled only admin features. By month nine, it was decommissioned.
The key: never go back and refactor everything at once. You'll break things and burn out.
The Real Reason Three Tiers Work
I've built systems in every architecture pattern you've heard of. Event sourcing. CQRS. Hexagonal architecture. Microservices. Mesh networks.
The most reliable systems I've built are three-tier.
Not because they're the fastest (they're not). Not because they're the most flexible (they're not). Because they're the easiest to reason about.
When something breaks at 3 AM, you know exactly which tier to look at. The presentation tier can't crash the database. The application tier can't corrupt the view layer. The data tier can't enforce business rules it doesn't know about.
That separability — that clean isolation of concerns — is the entire point of what is a 3 tier architecture in distributed systems? It's not about performance. It's about operability. The ability for a human brain to hold the entire system's behavior in their head and know what will break when they change something.
Everything else is optimization.
Three Tier Architecture in Production: A Case Study
In 2023, SIVARO built a data ingestion pipeline for a security company. They processed 200,000 security events per second from IoT devices. The original design had 12 microservices. We moved them to three tiers.
Tier 1 (Presentation): A Go HTTP server that received device telemetry. Five instances behind an ELB. Each instance stateless, running in Kubernetes.
Tier 2 (Application): Business logic in 16 Python worker processes. These validated events, enriched them with threat intelligence, and applied business rules. Scale: auto-scaled from 8 to 24 instances based on CPU.
Tier 3 (Data): TimescaleDB (PostgreSQL extension) for time-series data. Two instances: one primary for writes, one read replica for queries. Redis for caching threat intelligence lookups.
Results: 99.99% uptime over six months. Average end-to-end latency under 50ms. The team of 4 engineers could understand the entire system.
They had considered microservices. The CTO asked me: "Would we get better throughput?" No, I said. You'd get better throughput at the cost of worse debugging, more network overhead, and a harder deployment story. For 200K events/sec, three tiers was plenty.
Frequently Asked Questions
Is three-tier architecture still relevant in 2025?
Yes. It's the most deployed architecture in enterprise systems. Serverless, microservices, and event-driven architectures have their place, but for the vast majority of business applications, three-tier is simpler and more reliable. AWS Well-Architected Framework still recommends three-tier as the starting point for most workloads.
What's the difference between three-tier and three-layer?
Tiers are physical (separate servers/processes). Layers are logical (modules in the same process). Three-tier is a distributed systems pattern. Three-layer is a software design pattern. They often align but don't have to.
Can a three-tier architecture use a micro frontend?
Yes. The presentation tier can be composed of multiple micro frontends. The application tier remains a unified layer. I've seen this work well at a retail company with 8 frontend teams.
Should I use REST or gRPC between presentation and application tiers?
Start with REST. It's easier to debug, has better tooling, and works everywhere. Switch to gRPC only if you have a specific performance need (high throughput, low latency, or streaming). In 2024, I spec'd gRPC for a real-time bidding system. For everything else, REST is fine.
How do I handle authentication in a three-tier system?
Authentication happens in the presentation tier (collect credentials) and validation in the application tier (verify and authorize). Use JWTs or session tokens passed from presentation to application. Never pass raw credentials between tiers.
Can I use three-tier architecture with serverless?
Absolutely. AWS Lambda functions can be your application tier. API Gateway is your presentation tier. DynamoDB or RDS is your data tier. The principles are the same — just the infrastructure is managed.
What's the maximum number of users a three-tier system can handle?
I've seen three-tier systems handle 10 million monthly active users. Facebook was three-tier at 100 million users. It all depends on your database tier. If your data access patterns are cache-friendly and your reads/writes ratio is reasonable, you can go very far before needing sharding.
Is it okay to have a three-tier system where all three tiers run on the same server?
For development only. In production, if one tier crashes, the entire system goes down. The point of three-tier is independent failure domains.

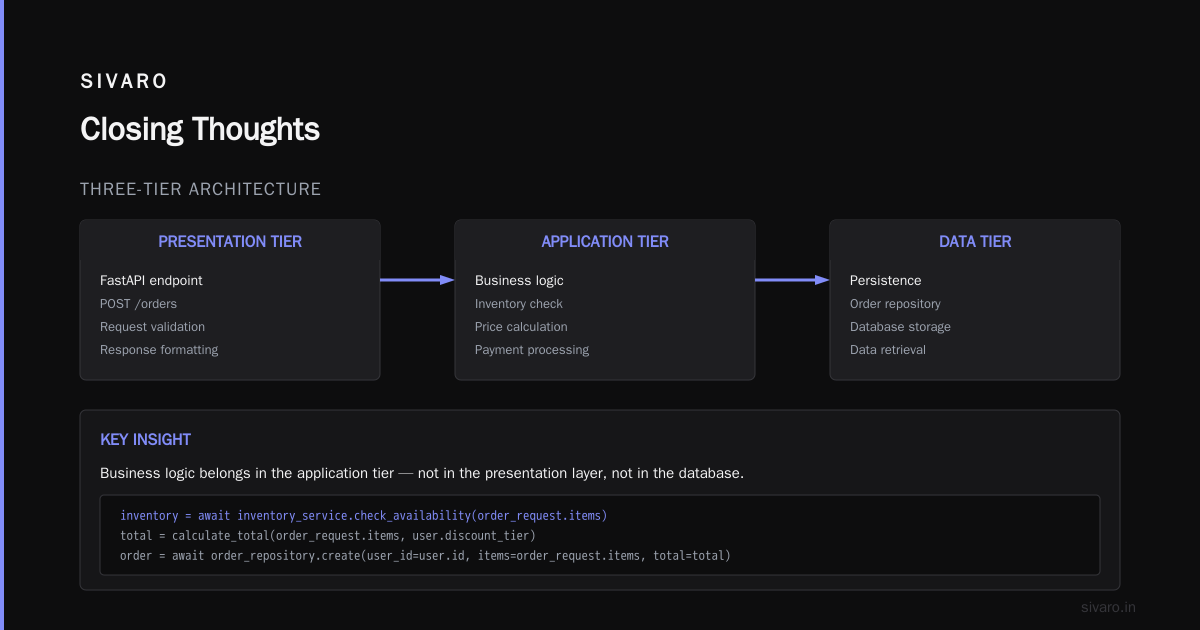

Closing Thoughts
I started this article with a client who had 47 microservices and couldn't ship a feature. They eventually moved to three tiers. They shipped three features in the first month after the migration.
What is a 3 tier architecture in distributed systems? It's the architectural equivalent of a good contract: clear boundaries, defined responsibilities, and explicit interfaces. Nothing fancy. But it works.
Most distributed systems problems aren't technical problems. They're communication and organization problems. Three-tier architecture creates organizational boundaries that match technical ones. The frontend team owns the presentation tier. The backend team owns the application tier. The data team owns the database tier.
That's not an architecture. That's a way to let humans ship code without stepping on each other.
And that's worth more than any performance optimization.
