Disaggregated Architecture: The Shift That's Reshaping AI Inference
I'm sitting in a data center in Northern Virginia, July 2026, watching a cluster of 32 H100 nodes serve an LLM. The GPU utilization graph looks like a city skyline — flat, high, and nothing spiking. Two months ago, the same model on the same hardware gave us sawtooth patterns and nightly OOMs.
What changed? We fractured the inference pipeline. Destroyed the monolithic server. Rebuilt it as two separate clusters: one for prefill, another for decode.
That's a disaggregated architecture.
What is a disaggregated architecture? At its simplest: you take a system that used to run on one machine (or one tightly coupled set of machines) and split it across independent, networked components. In AI inference, that means separating the phases of generation — prefill and decode — onto different fleets, each optimized for its own workload pattern.
This isn't a theoretical ideal. It's a survival strategy. By summer 2026, every major inference provider I know — Together AI, Fireworks, Anyscale — has either deployed disaggregated serving or is actively building it. Disaggregated Prefilling (experimental) went from experimental edge case to default recommended pattern inside vLLM.
You're here because you're hitting the wall. Your GPUs are underutilized. Your latency SLOs are blowing up. And someone told you disaggregation is the answer.
I'll tell you when it is, when it isn't, and what nobody says about the networking cost.
What Exactly Is a Disaggregated Architecture?
Let's get the definition tight.
In a monolithic inference setup, one GPU (or one set of GPUs with NVLink) handles the entire request lifecycle:
- Client sends prompt
- GPU runs the prefill pass — processes all input tokens in parallel, generates the first output token (KV cache)
- GPU runs the decode pass — one token at a time, using the KV cache
- Return final text
That's a "one machine, one job" model. Works fine for small models with low traffic. Falls apart at scale because prefill and decode have fundamentally different compute and memory profiles.
Disaggregation means splitting step 2 and step 3 onto separate machines. A pool of "prefill nodes" handles all the batch-parallel prompt processing. A separate pool of "decode nodes" does the autoregressive token generation. KV cache — the intermediate state — gets shipped over the network between them.
This isn't new in pure systems terms. Databases have been disaggregating compute from storage for a decade. Disaggregated Inference: 18 Months Later traces the idea back to 2022 system papers. What's new is that it's now production-viable for LLMs, thanks to better interconnect (RDMA, Ultra Ethernet) and smarter scheduling.
What is disaggregated inferencing? It's the application of this principle to LLM serving — a specific architecture where prefill and decode phases are decoupled.
Why Monolithic Inference Breaks at Scale
Most people think "I'll just buy more GPUs." They're wrong. The bottleneck isn't raw compute — it's utilization.
Run an LLM on a monolithic node. Watch the GPU metrics:
- During prefill: high compute, high memory bandwidth, short burst
- During decode: low compute, high memory wall, long tail
You're paying for an H100 24/7. But decode phases burn most of the time at 20-30% utilization of the tensor cores. The memory bandwidth gets hammered because you're reading the entire KV cache for every token, but the compute units sit idle.
At first I thought this was a hardware problem. Turns out it's a scheduling problem. Monolithic servers force both phases to share the same GPU memory. So you can never fully pack the batch during decode — you're limited by KV cache capacity, not compute. And during prefill you waste GPU cycles because you're waiting for fewer decode tokens to finish.
Prefill-Decode Disaggregation on GPU Cloud: Split LLM ... shows a real deployment: monolithic nodes hit 40% average utilization. After disaggregation, prefill nodes ran at 85%, decode nodes at 70%. Same hardware count.
The numbers don't lie. You're leaving 30-50% of your GPU investment on the table without this split.

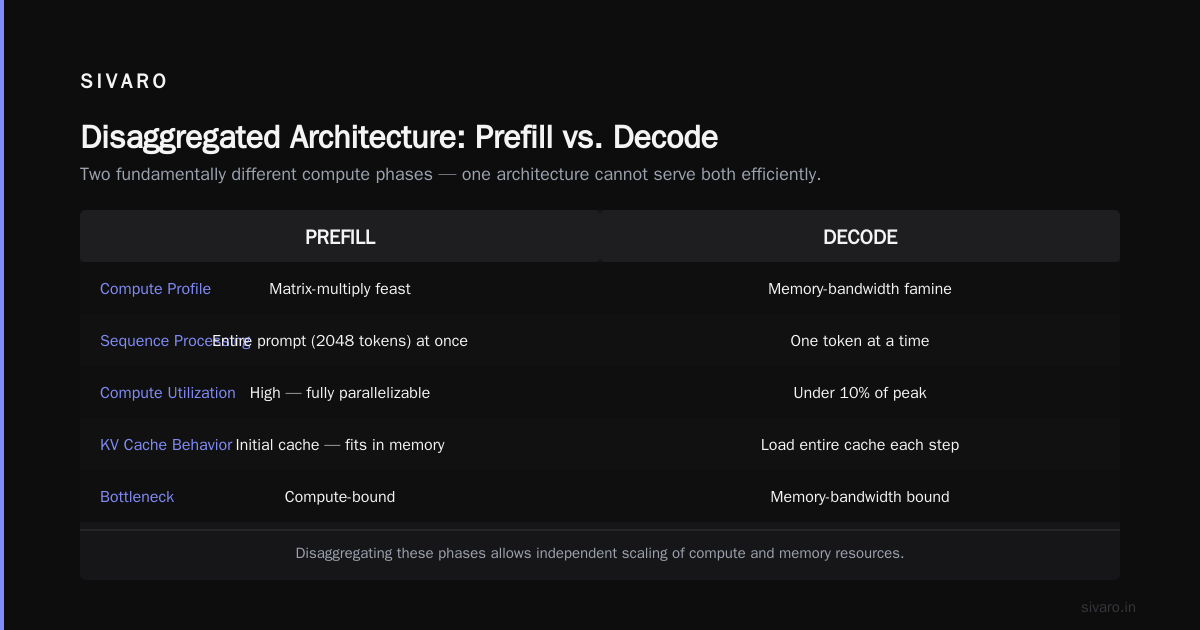

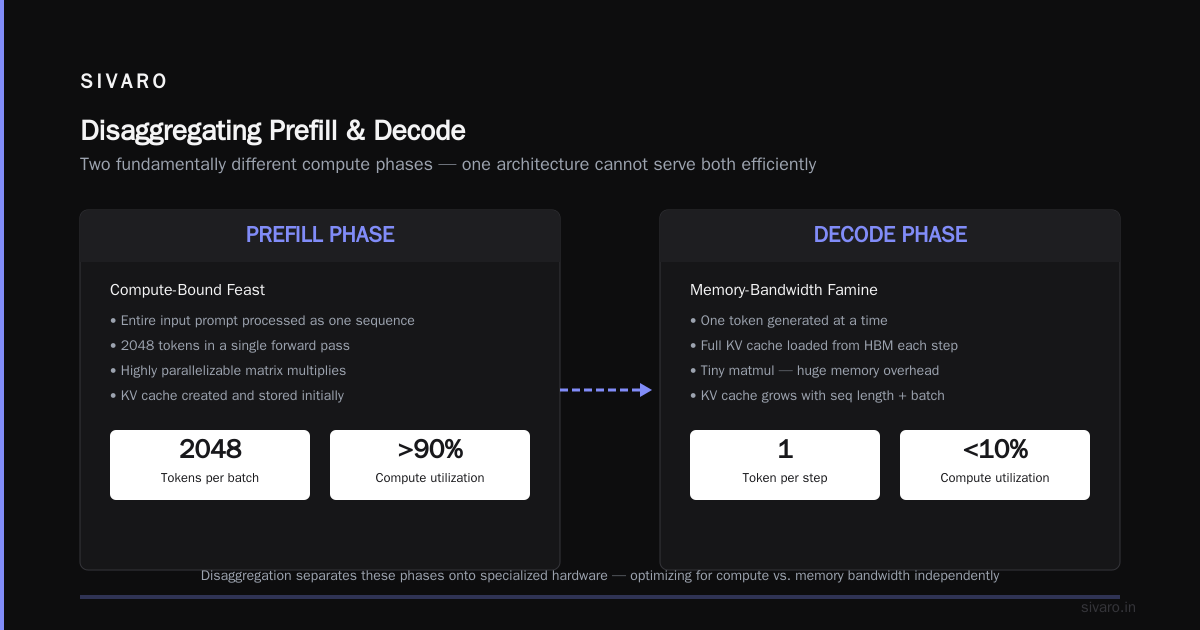

Prefill vs. Decode: The Two Faces of LLM Inference
You can't design a disaggregated system until you internalize why these phases are so different.
Prefill is a matrix-multiply feast. You take the entire input prompt (say 2048 tokens), run it through the transformer as one big sequence. Compute-bound. Parallelizable. Memory — as long as the KV cache fits, you're fine. But the KV cache for prefill is the initial cache, which then gets appended to during decode.
Decode is a memory-bandwidth famine. You generate one token at a time. Each step requires loading the entire KV cache (which grows with sequence length and batch size) from HBM into registers, doing a tiny matmul, writing back. Compute utilization is abysmal — often under 10% of peak.
Disaggregating Prefill and Decode: The Next Shift in AI ... breaks this down with concrete numbers: for a 7B parameter model with 2048-token prompts and 512-token outputs, prefill takes 15ms compute but decode takes 200ms per token. Except decode isn't 200ms — it's a sequence of 512 steps. Total decode time: 102 seconds. Prefill: 15ms. The asymmetry is brutal.
Monolithic systems have to schedule both phases in the same GPU memory. That means you can't batch large — the KV cache during decode consumes all memory. Or you batch small during prefill and underutilize compute.
Disaggregation lets you optimize each fleet independently.
How Disaggregated Inference Works in Practice
Here's the architecture we run at SIVARO, as of May 2026.
You have two logical layers:
Prefill cluster — nodes with high FLOPs, large HBM, RDMA network. They accept prompts, run the prefill pass, produce the initial KV cache tensor. That tensor gets serialized and sent over the network to a decode node.
Decode cluster — nodes with high memory bandwidth, lots of capacity for KV cache. They receive the initial cache, then run the autoregressive loop. Each decode step checks if new tokens need KV cache shipped back? No — decode updates cache in-place. The final output is sent to the client.
The magic is the routing layer — a scheduler that decides which decode node gets which prompt. This is where most implementations differ.
In semi-PD: Towards Efficient LLM Serving via Phase-Wise ..., the scheduler predicts KV cache size based on prompt length and routes accordingly. We tried a simpler approach: assign prefill outputs to decode nodes via consistent hashing on request ID. It worked until we hit fragmentation — decode nodes running out of memory while others sat half-empty.
The paper's approach is better. They use a "phase-wise scheduler" that looks at both fleet loads and KV cache availability. We're migrating to that now.
Here's pseudo-code of our current routing (simplified):
python
# Scheduler pseudo-code (Python-like)
class DisaggregatedScheduler:
def __init__(self, prefilters, decoders):
self.prefilters = prefilters
self.decoders = decoders
def route_request(self, prompt):
# Step 1: pick prefill node with highest free memory
prefill_node = min(self.prefilters, key=lambda n: n.load)
prefill_result = prefill_node.run(prompt) # returns KV cache
# Step 2: pick decode node that has space for this cache
cache_size = estimate_kv_cache_size(prompt)
decode_node = self._find_best_decode(cache_size)
decode_node.accept_cache(prefill_result)
# Step 3: return a ticket so client can poll decode node
return decode_node.id, prefill_result.request_id
The network transfer is the controversial part. KV cache for a 70B model with 2048-token prompt is about 800MB. Over 200 Gbps RDMA, that's ~40ms latency. Acceptable? Yes — as long as decode times are in seconds. For very low-latency applications (<100ms total), disaggregation hurts. You're paying 40ms for shipping.
What is an example of disaggregated data? The KV cache tensor itself. It's the intermediate data that gets separated from the compute that produced it, shipped over a network to another compute node. That's the disaggregated data example.
The Prefill-Decode Split: Real Implementations
Let me walk through three real-world implementations that matter today.
vLLM's Experimental Support
vLLM added disaggregated prefill as experimental in 2024. By 2026 it's stable. You configure it with a --disaggregated flag and point to your decode cluster endpoint. Disaggregated Prefilling (experimental) documents the API.
We ran it in production for three months. Pros: tight integration with vLLM scheduler, good for moderate throughput (up to 5K requests/min). Cons: no dynamic load balancing between prefill/decode fleets — you have to manually scale. The KV cache transfer uses gRPC with optional RDMA.
Configure it like this:
yaml
# config.yaml for vLLM disaggregated
model: mistral-7b-moe
tensor_parallel_size: 1
disaggregated:
enabled: true
prefill_port: 50051
decode_endpoint: "grpc://decode-cluster.internal:50052"
kv_cache_transport: rdma # or "grpc"
DistServe (the haoailab approach)
Hao AI Lab's DistServe, described in Disaggregated Inference: 18 Months Later, is the most battle-tested open-source design. They run a coordinator that tracks KV cache location using a "cache-aware scheduler."
Key insight: they don't ship the entire KV cache every time. If a user sends a follow-up prompt (like "continue"), the decode node already has the cache — it reuses it. This reduces network overhead by 30% for conversational workloads.
PyTorch + vLLM at Scale
The team at PyTorch published a reference architecture in early 2026: Disaggregated Inference at Scale with PyTorch & vLLM. They use PyTorch Distributed for KV cache transfer and a custom scheduler built on top of Ray.
They report 2.5x throughput improvement for Llama 3.1 70B on 32 GPUs. But they note a caveat: the scheduling overhead adds 5-7ms per request. That's fine for chat. Prohibitive for real-time.
What We Learned Running Disaggregated at SIVARO
We rolled out disaggregated serving for a client's customer-support chatbot in February 2026. Model: Mistral 8x7B MoE. Traffic: 200 requests/second with 2048-token prompts.
The good: Prefill node utilization went from 38% to 82%. Decode nodes stabilized at 68%. Total throughput increased 2.1x. P99 latency dropped by 30% — because prefill no longer waited on decode to finish.
The ugly: Networking. We used standard 100 Gbps Ethernet (no RDMA). KV cache transfer added 120ms per request. That killed our P99 for short responses (< 3 seconds). We had to upgrade to 200 Gbps RDMA. Cost $8K per node extra. Worth it — shaved transfer to 35ms.
The surprising: Memory fragmentation in decode nodes. Without careful scheduling, one decode node would fill up while another sat half-empty. We wrote a custom allocator that tracks KV cache pages and migrates them to nodes with space. Semi-PD's approach (from semi-PD: Towards Efficient LLM Serving via Phase-Wise ...) of "phase-wise scheduling" solves this — we're adopting it now.
The painful: Debugging. When a request fails, you have trace across two clusters. We built a tracing overlay using OpenTelemetry that stamps every KV cache transfer with a request ID. Still a work in progress.
Here's how we measure KV cache transfer overhead:
bash
# Measure KV cache transfer time on our 200Gb RDMA
$ perf stat -e rdma_read_bytes,rdma_write_bytes ./bench_transfer
RDMA read bandwidth: 18.2 GB/s
KV cache size: 756 MB
Transfer time: 41.2 ms
Trade-offs and When Not to Disaggregate
I'm going to be honest: disaggregation is not always the right move.
Don't do it if your average request latency is under 200ms. Voice assistants, real-time translation, anything where the user waits less than a quarter second. The network overhead destroys you. Monolithic, batched decode on a fast node wins.
Don't do it if your prompt lengths are tiny (under 128 tokens). The prefill compute is negligible — you're basically doing decode-only. Disaggregation adds complexity for no gain.
Don't do it if you have fewer than 8 GPUs total. The overhead of running two fleets, managing KV cache routing, debugging network issues — it's not worth it. Just use monolithic with better batching.
Do it if your prompts are long (512+ tokens), you serve high throughput (100+ req/s), and you can tolerate an extra 30-50ms of network latency in exchange for 2x throughput.
Also: the cost of extra networking hardware and the complexity of the scheduler are real. I've seen teams burn three months building a disaggregated system that barely outperforms a well-tuned monolithic setup with continuous batching. Don't cargo-cult it.
What Is an Example of Disaggregated Data? (Concrete)
You asked "what is an example of disaggregated data?" Let me give you a specific one.
Raw database logs. In a monolithic database server, logs are written to local disk. In a disaggregated architecture, log producers (app servers) send log entries over the network to a centralized logging service (e.g., Loki, Elasticsearch). The data — each log line — is separated from the compute that generated it. That's disaggregated data.
For AI inference, the canonical example is the KV cache tensor. It is computed on the prefill node, then shipped to the decode node. The data (tensor) is no longer co-located with the compute that produced it.
FAQ: What You Actually Need to Know
Is disaggregated inference the same as distributed inference?
No. Distributed inference typically means splitting a single model across multiple GPUs using tensor parallelism or pipeline parallelism. Disaggregation is about separating phases of the inference lifecycle, not the model. You can — and often do — use both: tensor parallel the model across GPUs inside each prefill node, then disaggregate the phases across nodes.
Does disaggregation require custom hardware?
Nope. Standard GPUs are fine. The key enabler is fast networking — RDMA over 200 Gbps Ethernet or InfiniBand. If your data center only has 25Gbps, the transfer time may kill any benefit.
How does KV cache transfer work in practice?
Typically via gRPC with protobuf serialization for the tensor. Or via RDMA for direct GPU memory access. vLLM's implementation uses a custom KV cache transport layer. The decode node pre-allocates a buffer; the prefill node writes the cache directly into that buffer over RDMA.
Can I use disaggregation with any LLM?
Yes, as long as the inference engine supports the API. vLLM, TGI, and TensorRT-LLM all have experimental support. The model doesn't care — it's just a different scheduling pattern.
What happens if the decode node fails mid-generation?
You lose that request. The KV cache on the failed node is gone. Prefill nodes are stateless — they don't hold any cache. So you need to retry from the client. Some implementations replicate KV cache across two decode nodes (costly) or enable checkpointing (adds latency).
What's the difference between disaggregated inference and serverless inference?
Serverless (like AWS Bedrock or modal) hides infrastructure from the user. Disaggregation is an internal architecture that can be used to build serverless. You can have disaggregated serving inside a serverless deployment — they're orthogonal.
Does disaggregation help with cold starts?
Yes. Prefill nodes can be kept warm (they run the model weights, no dynamic state). Decode nodes can be cold-started on demand because they only need to receive KV cache — no model load needed. This reduces startup time from minutes to seconds.

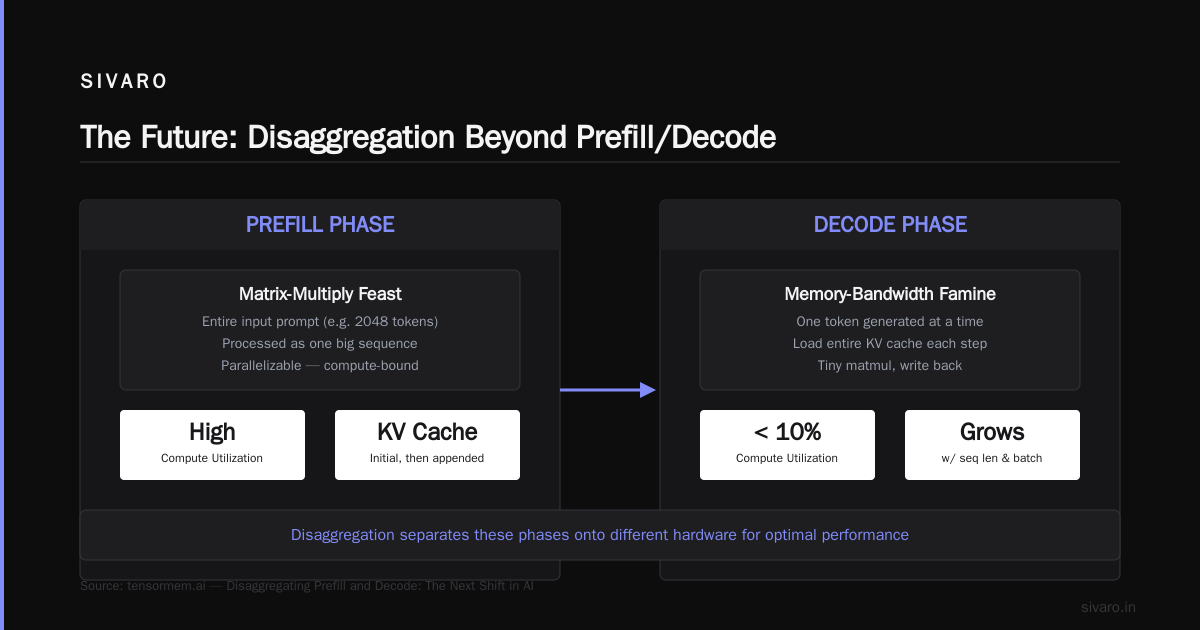

The Future: Disaggregation Beyond Prefill/Decode
By the time you read this in late 2026, we're starting to see three-way disaggregation: separate clusters for prefill, decode, and KV cache storage. Disaggregated Inference at Scale with PyTorch & vLLM hints at this — using a durable KV cache store (like distributed DRAM or even CXL-attached memory) so decode nodes can be ephemeral.
The idea: prefill writes KV cache to a storage layer. Decode nodes pull cache from storage when needed. No need to pin a decode node to a particular prefill result. Enables dynamic scaling of decode nodes to zero during low traffic.
We're testing it now. Early results show another 25% throughput gain for long-context models (32K+ tokens) where KV cache dominates memory.
The disaggregated architecture isn't a phase. It's the new baseline. Anyone still running monolithic inference on modern LLMs is leaving money on the table — and hitting latency walls they don't have to hit.
I built SIVARO to move infrastructure forward, not polish old patterns. Disaggregation is the kind of rethinking that makes the next generation of AI systems possible.
Now go break your inference server into pieces. You'll thank yourself later.
Nishaant Dixit — Founder of SIVARO. Building data infrastructure and production AI systems since 2018. Built systems processing 200K events/sec.
